VIS/NIR 1.4MP SpectroCam
$0.00
SpectroCam™ multispectral wheel cameras offer a sophisticated, flexible platform for development and deployment of various imaging applications. Available in UV, VIS, and SWIR versions. Designed to reduce development times and simplify the design cycle, SpectroCam™ features a high speed, continuously rotating filter wheel containing 6-8 interchangeable optical filters. Combined with the scientific grade CCD array, this filter design creates a fully portable and configurable, high speed multispectral imaging system. With minimal pixel shift and high frame rates, this dynamic device is a powerful product development tool.
SpectroCam™ systems are available in a turnkey format complete with lens, eight interchangeable filters and acquisition software that can be used for innovative 2D spectroscopy research in a variety of fields including water quality measurement, product screening, machine vision, medical imaging, surveillance and authentication. The system can also be customized for integration into specific OEM products. The platform is readily modified to meet your mechanical and environmental needs.
SpectroCam™ is available for R&D teams who need a quick, turnkey solution. The device utilizes a wideband CCD capable of UV-enhanced measurements and can be supplied with a standard set of filters or outfitted with up to eight different interchangeable custom filters. The proprietary design allows for quick delivery while providing a system that suits your specific application needs today and for years to come. The SpectroCam™ offers a cost-effective and versatile solution for your current and future multispectral imaging projects.
Applications
- Biomedical markers
- Medical tissue analysis
- Forensics examination
- Authentication
- Art & archeology
- Food quality grading
- Colorimetric assays
- High accuracy color
- Enhanced night vision
Benefits
- Sequential 6-8 band multispectral imaging
- Full frame resolution at up to 25 frames/second
- Interchangeable standard & custom spectral filters
- Intuitive acquisition software
- High speed digital video output
What’s Included
- SpectroCam
- Set of Filters
- Lens
- Laptop w/ Imaging and Analysis Software
- Tripod for SpectroCam
- Medium Pelican Case
- Power Supply and Cables
Additional information
| Dimensions | 12 × 10 in |
|---|
Specifications
| VIS 5MP SpectroCam Technical Specifications | |
|---|---|

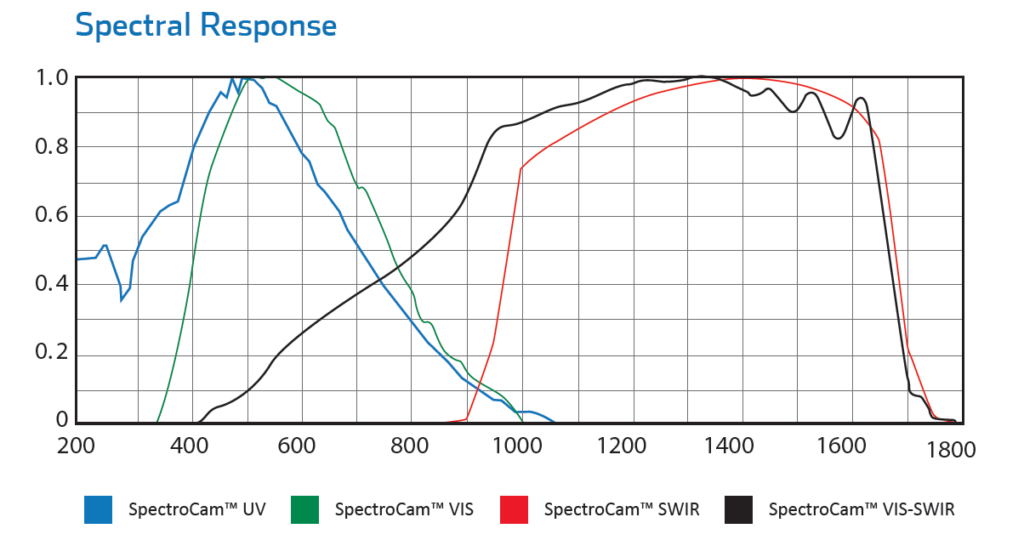

| Spectral Response | 400-1000nm (VIS+NIR) |
| Sensor | CCD, Si, 5MP 2456 x 2058 px 3.45µm pixel pitch |
| Spectral Bands | 8 |
| Active Area | 8.47mm x 7.1mm |
| Frame Rate Overclocked | Up to 15 fps |
| Optical Interface | F Mount standard (manual aperture & focus), range of lenses available, adapters available on request |
| Digital Output | Gig-E, 12 bit |
| Size and Weight | 136 x 124 x 105mm (5.4″ x 4.9″ x 4.1″) 908g (2.0lbs) |
